Howo 4x2, 6x4 and 8x4 drive fuel tanker truck technical drawing

When we design Howo fuel tanker truck, there are some necessary points we need to consider. This kind of technical design involves with truck chassis specification and tanker compartment body , low gravity safety request, pump valve system and others. All the design aim to build a reliable howo oil tanker truck which can safety transport oil fuel liquid.

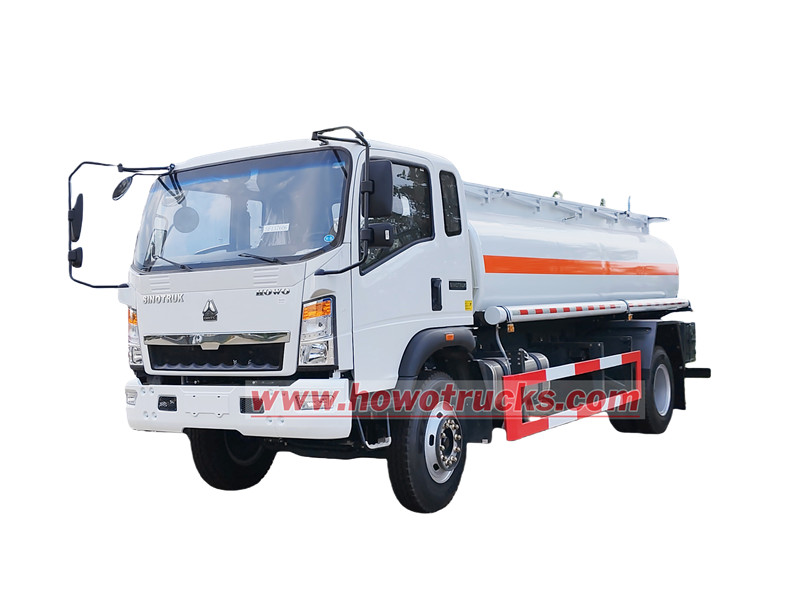

Howo 4x2, 4x4 fuel tanker ( Use for Narrow street, refuel station)

Wheelbase : 3360- 4800 MM

Engine horse power : 80 Hp - 290 Hp

Tanker capacity : 3000 liters - 15000 liters

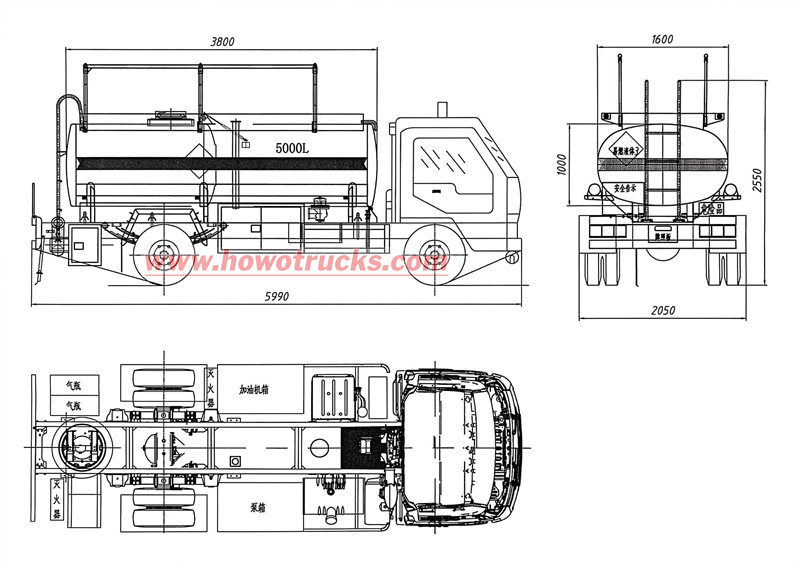

Howo small capacity oil tanker fuel truck drawing

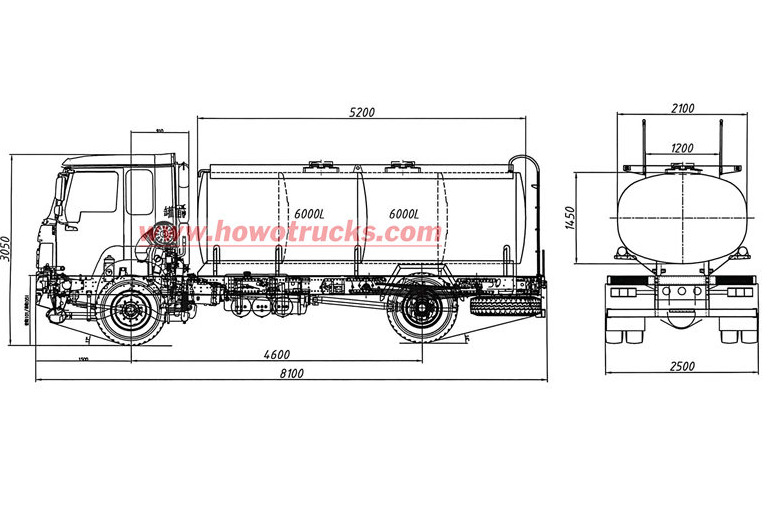

Howo 12000 liters single axle oil fuel tanker truck drawing

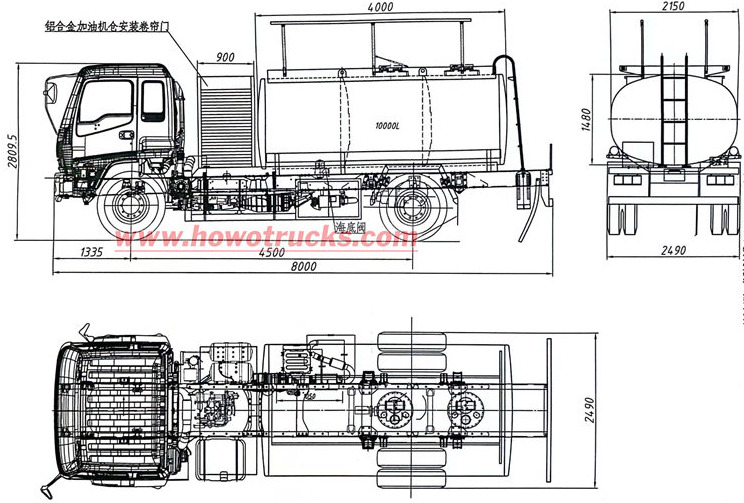

Howo 10000 L oil fuel tanker truck drawing

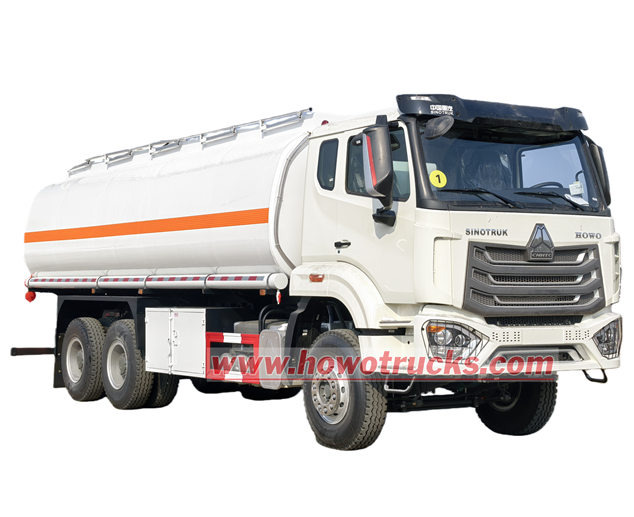

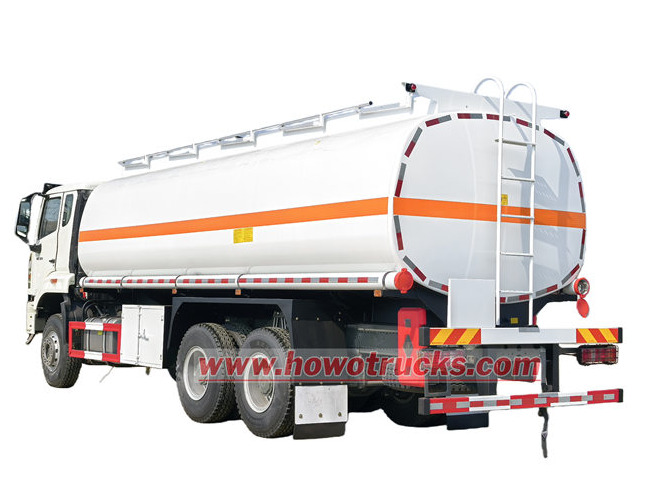

Howo 6x4, 6x6 diesel tanker ( Use for Large capacity transport, Oil station delivery)

Wheelbase : 4450+1450 mm- 5250+1450 MM

Engine horse power : 270 Hp - 430 Hp

Tanker capacity : 15000 liters - 25000 liters

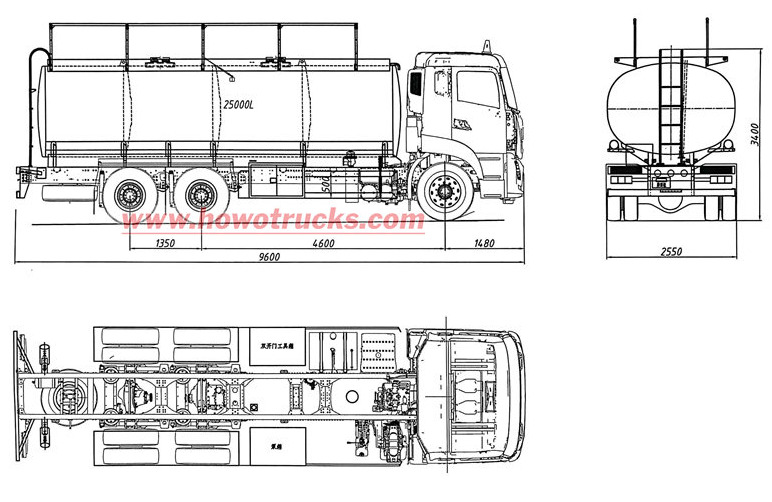

Howo 25000 liters fuel bowser with 4 compartments

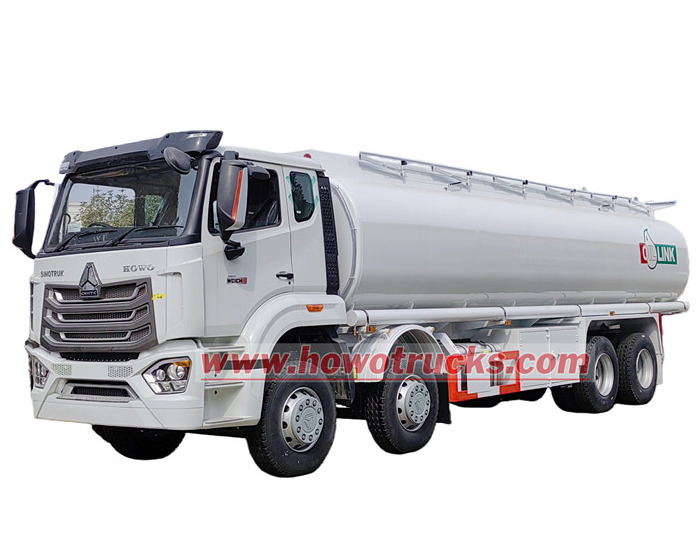

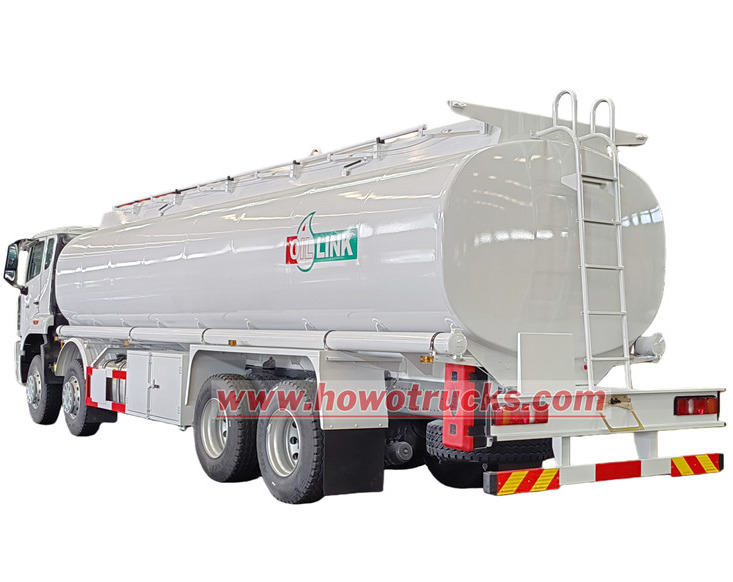

Howo 8x4, 8x8 diesel tanker ( Use for Oil field and gas station , cross country transport)

Wheelbase : 1950+4450+1450 mm- 1950+5250+1450 MM

Engine horse power : 3800 Hp - 530 Hp

Tanker capacity : 25000 liters - 40000 liters

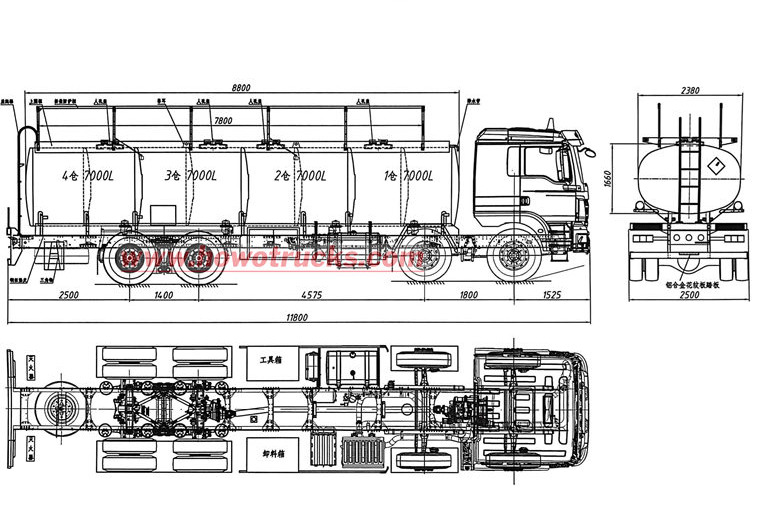

Howo 28000 liters oil transport delivery tanker truck

Upon on above howo oil truck techncial drawing, customers can have clear mind on what they need on the tanker capacity , reasonable compartments and pipe diagram. As premium fuel tanker truck manufacturer with howo trucks, CS trucks have great advantage on technical design, special customization, after sale service guidance. Welcome to make inquiry.
